Additional options: analysis options

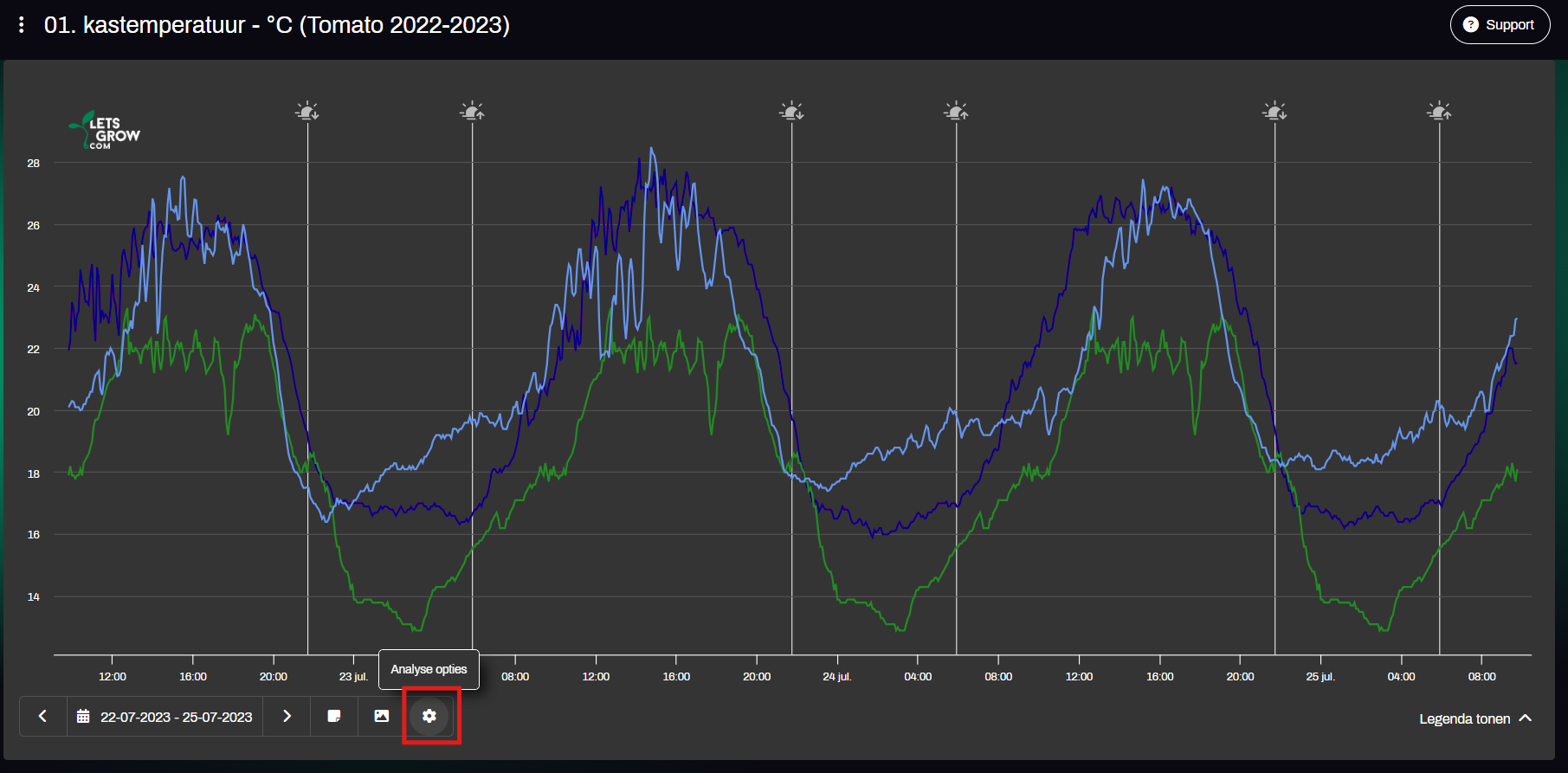

For additional analysis options, you can open the chart in a new tab via the three dots. Then, use the gear icon in the bottom left corner to choose from the following analysis options:
Group the data by hour:
The "Group the data by hour" option will group all 5-minute values over the selected period into the full hour. This creates a clear graph in which the strategy used over the selected period can be visualised. This option can also be combined with the "Deviation" or "Time shift" option.
Deviation:
The "Deviation" option creates a non-visible average line of the lines present in the graph from which the adjustable deviation is determined. The area of deviation is then greyed out so that a line is only shown when it falls outside the set deviation. This option can also be combined with the "Group by hour" and "Time shift" options.
This option is only available if you have the item interval set to 5 minutes
Time delay:
By turning on the "Time delay" option, you can compare the currently selected period with another period. In this, you can choose an adjustable number of days, weeks, months, or years back. This option can also be combined with the "Group by hour" and "Deviation" options.
Min-max option:
With this option the graph shows a bandwith with the lowest and highest value of the locatins upon which the item is based. For personal graphs, this option can only be used when the item has multiple locations and represents an average.
This option is only available in the graph-editor.
