If you are in the graph editor, and you have selected the right items + interval, you will come to the extra options.

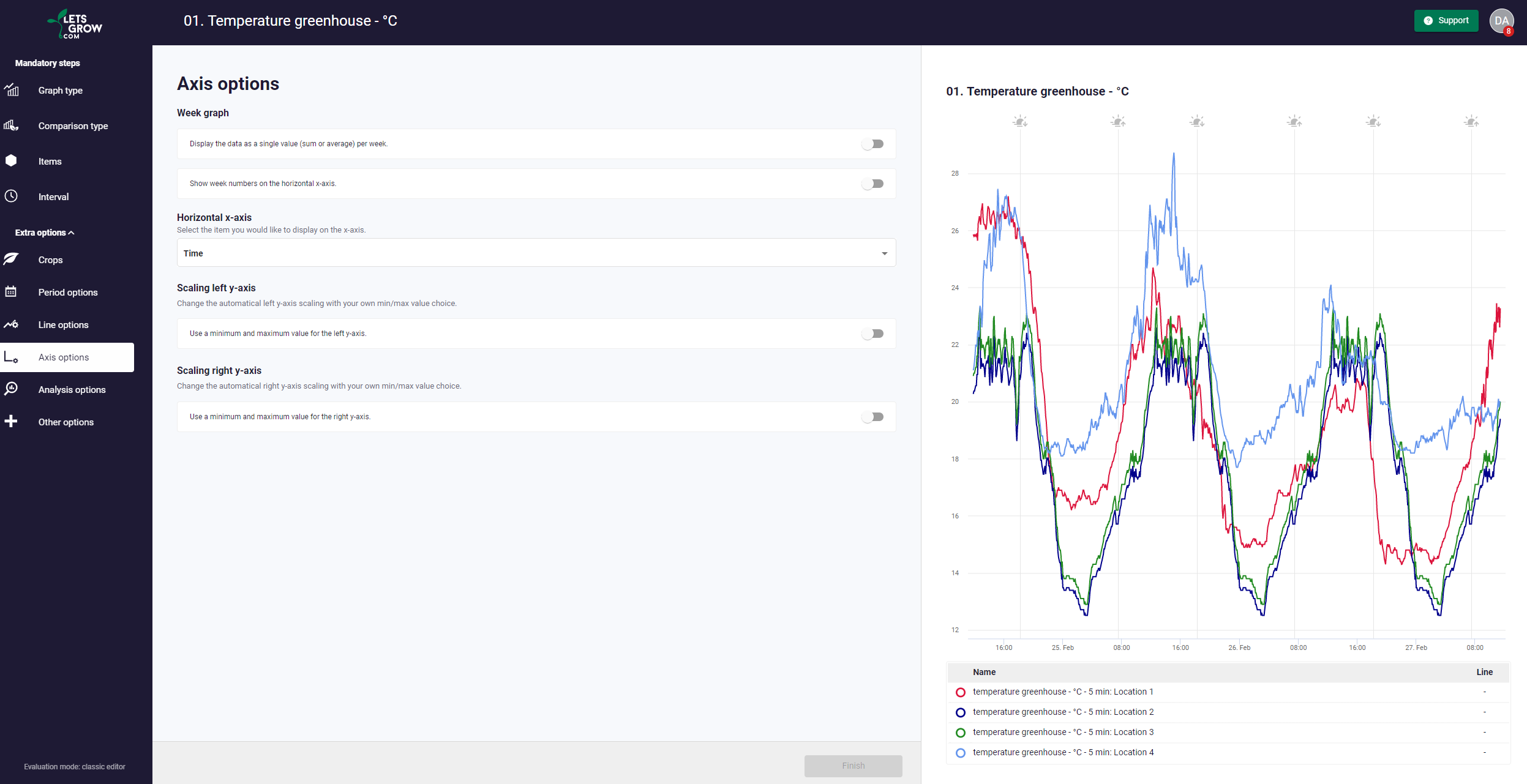

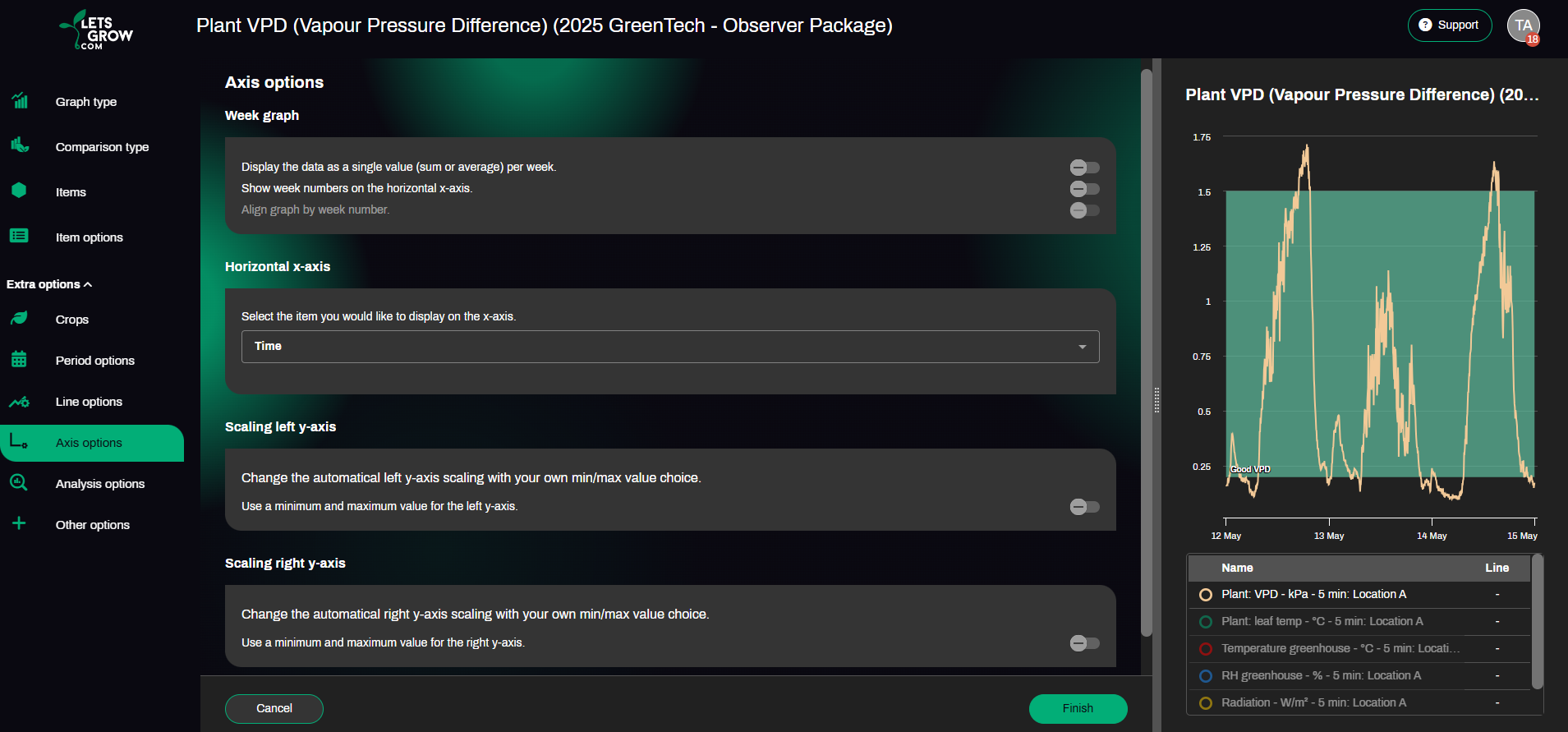

One of those extra options are the "Axis options". If you select this, you will see different axis options.

Below we will explain what each option means;

Week graph

- With the 1st option you can indicate whether you do not want to see the values per day or 5 minutes, but per week. He will make one average of all data from that specific week, and this will then be displayed in the graph. This can give a better overview for larger periods than smaller data points.

- As standard, dates are displayed in graphs on the horizontal axis. If this is not always clear and you work more often with week numbers, this can also be adjusted. If you turn on the slider, all dates will change to week numbers.

Horizontal X-axis

Here you can select which item you want to see on the horizontal X-axis.

By default, the "time" set on the horizontal axis, but this can be any item. This can help with comparisons and is also used in the RTR graph (as an example).

Left y-axis scales

By means of the items that have been selected and you want to see them on the left Y-axis, a standard scale is selected on the left Y-axis.

If you find the scaling too large or too small, it is possible to adjust it. With the option "left Y-axis scales" you can set the min and max of the left Y-axis.

Right y-axis scales

By means of the items that have been selected and you want to see them on the right y-axis, a standard scale on the right y-axis is selected.

If you find the scaling too large or too small, it is possible to adjust it. With the "right y-axis scales" option you can set the minus and max of the right y-axis.
